Chipper

  • Wood chipping machine drum wood chipper
  • Wood chipping machine drum wood chipper
  • Wood chipping machine drum wood chipper
  • Wood chipping machine drum wood chipper
  • Wood chipping machine drum wood chipper
  • Wood chipping machine drum wood chipper
Wood chipping machine drum wood chipper Wood chipping machine drum wood chipper Wood chipping machine drum wood chipper Wood chipping machine drum wood chipper Wood chipping machine drum wood chipper Wood chipping machine drum wood chipper

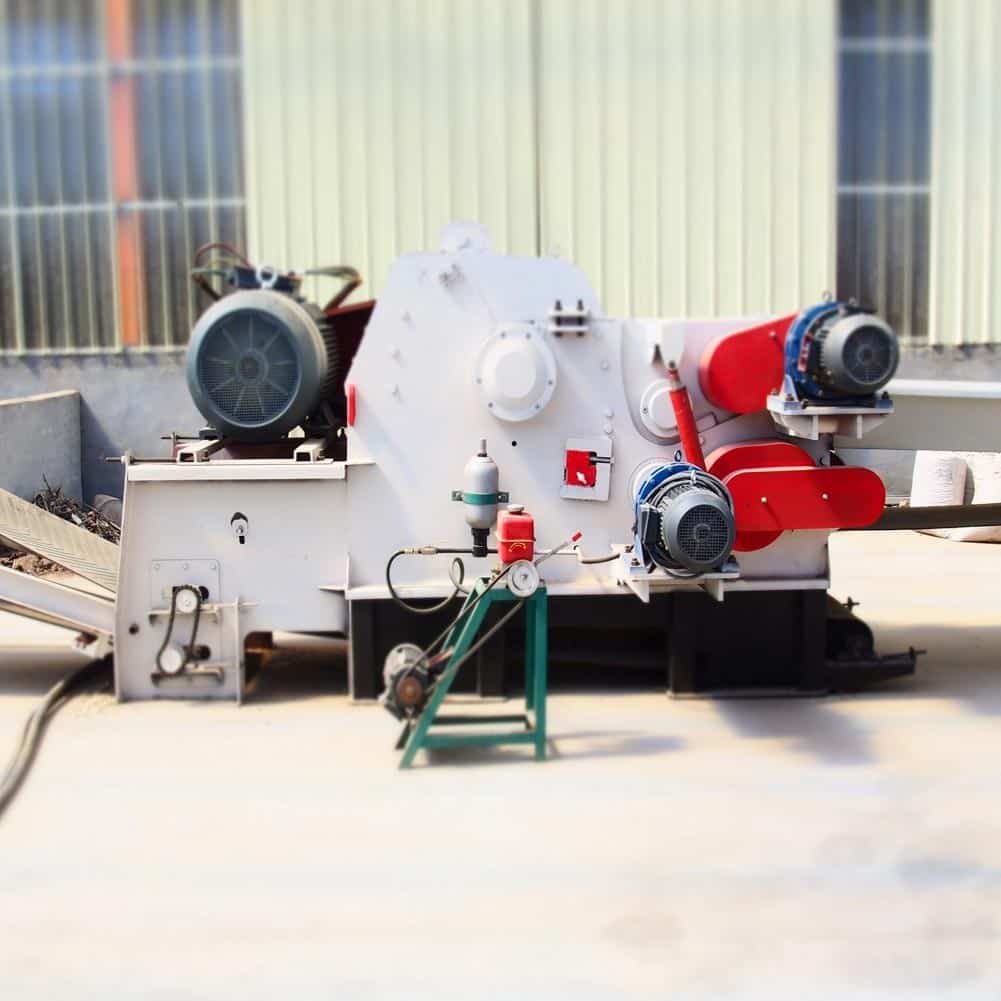

Wood chipping machine drum wood chipper

  • Product Name: Drum Wood Chipper
  • Model: YMPJ216 / YMPJ218 / YMPJ2113/ YMPJ216k
  • Power: 55kw / 110kw / 315kw/ 90kw
  • Capacity: 3-5t/h 6-10t/h 15-25t/h 4-8t/h

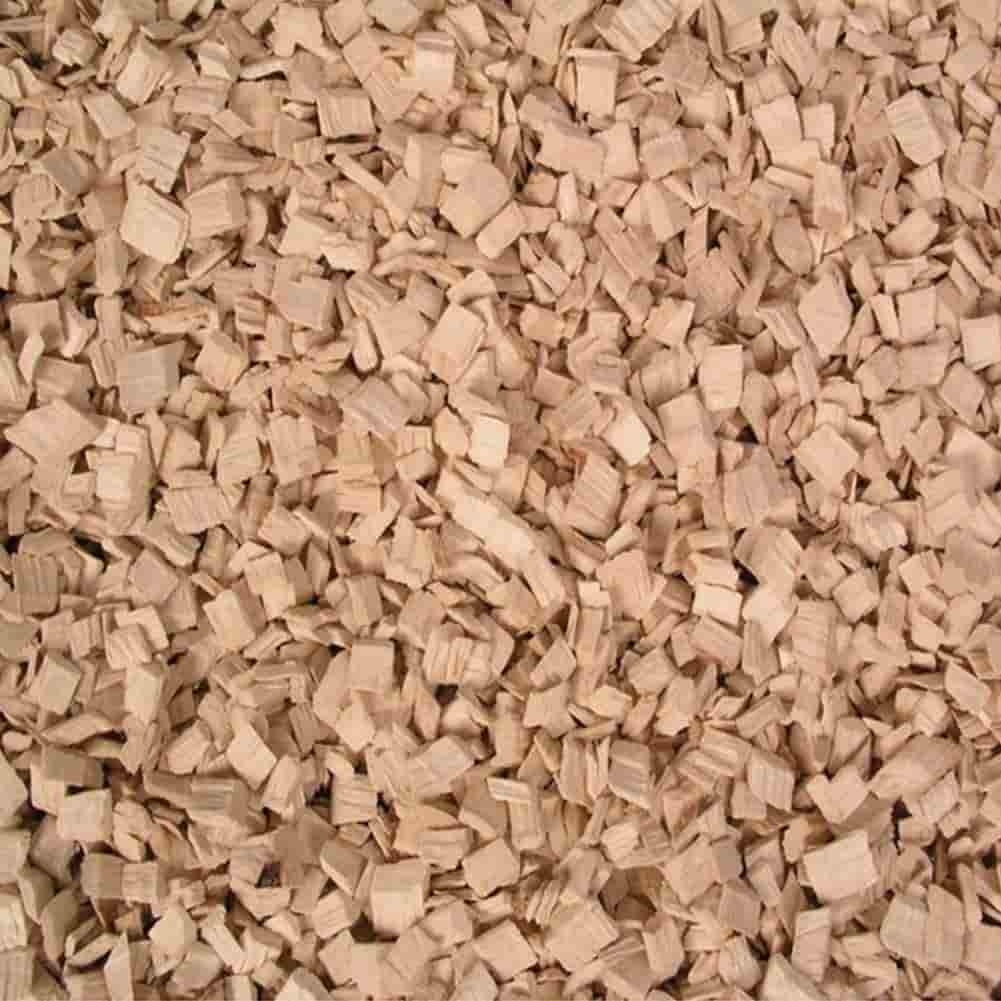

  • Finished Size: 30mm
  • Feed Size: 280*545mm / 360*710mm / 530*1100mm / 530*1100mm
  • INQUIRY

Strong body, material: is Carbon steel Q235, can run steadily without ground foundation.

Blade material is H13, more hard and anti-wearing. It can cut hard wood and service life is more longer

Feed roller adopts 45# Mn steel. This kind of steel has strong abrasion, precise bite force, so it can reduce damage for the chipper.

Parameter

Model
YMPJ216YMPJ218YMPJ2113YMPJ216K
Power(kw)5511031590
Capacity(t/h)3-56-1015-254-8
Max Feeder Size(mm)280*545360*710530*1100280*1200
Finished Size(mm)30303030
Weight(t)4.7712

Raw Material

Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图1)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图2)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图3)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图4)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图5)
          Wood Log      Wood Branches            Bamboo         Wood Pallet        Wood Block


1.Strong body of wood chipper, material: is Carbon steel Q235, can run steadily without ground foundation.

Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图6)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图7)

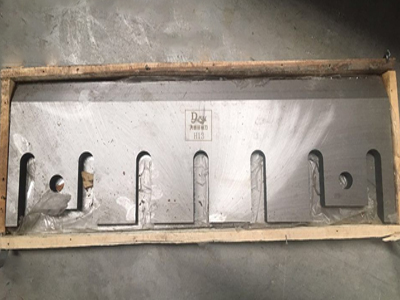

2.Wood chipper for sale blade use H13 material, more hard and anti-wearing. It can cut hard wood and service life is more longer , just need to sharpen it every 5-7 days (8 hours per day )

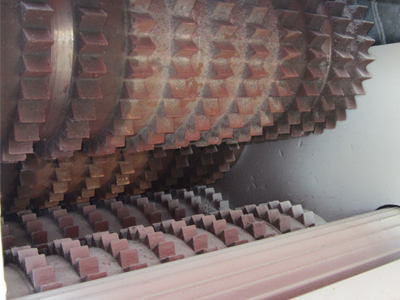

3.Feed roller of drum chipper adopts 45# Mn steel. This kind of steel has strong abrasion, precise bite force, so it can reduce damage for the chipper.

Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图8)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图9)


4.The rotors of chipping machine all passed the dynamic balance testing

5.Motor of wood chipper use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current when entering long wood log.

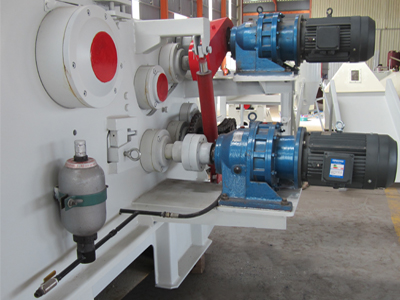

6.The hydraulic system of wood chipper supplier is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.

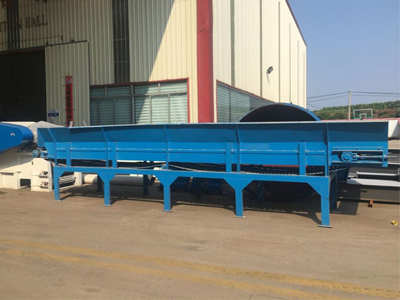

7.Feeding chain conveyor of wood chipper shredder can feed material evenly, so the material won’t be blocked.

Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图10)Most popular large capacity 8-15 t/h wood tree shredder wood chipper(图11)
